Where do you put the AC drain line?

The AC drain line is typically connected directly to the drain pan, which is located underneath your indoor air handler unit. From there, the line should be routed to a safe discharge point outside your home or to a nearby floor drain, ensuring it meets local building codes. Avoid direct connections to prevent contamination from sewage gases.

Where do you terminate condensate lines?

Condensate lines should terminate in a location that allows for safe and effective drainage. This can include outdoor areas, a nearby floor drain, or a dedicated drain connected indirectly to your plumbing system to prevent contamination. Ensure the termination point is away from walls and appliances to avoid potential overflow and damage.

Can AC condensate drain into the sewer?

No, AC condensate should not drain directly into the sewer. This can lead to contamination and blockages. Instead, use an air gap or indirect drain connection to route the condensate safely. This setup helps prevent sewage gases from flowing back into your home, protecting your indoor atmosphere.

Can a condensate line drain into a vent pipe?

No, a condensate line should not drain into a vent pipe. Vent pipes are designed to release sewer gases from your plumbing system and not to handle liquid discharge. Connecting a condensate line to a vent pipe can lead to blockages and contamination issues. Always follow proper installation guidelines to ensure safe and effective drainage.

What is an air gap in the condensate drain?

An air gap in a condensate drain is an open vertical space between the outlet of one pipe and the inlet of another. This gap prevents backflow and overflow by ensuring there is no direct connection between the two pipes. Air gaps are crucial in protecting against contamination and ensuring proper flow and pressure within the condensate system. They are often installed where the drain line exits your home, preventing water from being siphoned from P-traps and ensuring efficient drainage.

Where to Run AC Condensate Drain Line

When installing condensate drain lines, it is crucial to adhere to local building codes to ensure safety and compliance. The National Standard Plumbing Code (NSPC) requires routing A/C condensate through an air gap before connecting to a pipe in a plumbing system. This ensures that the installation meets the necessary standards and prevents potential issues.

Outdoor AC unit with connected pipes and tools, demonstrating proper condensate drain line installation with an air gap.

Running an air conditioning (AC) condensate drain line involves a few basic steps. Before you begin, make sure you know the local building codes. They can vary depending on where you live. A professional from Bob’s Repair can assist you with the building codes and ensure that the condensate line is installed safely and correctly.

If you are qualified to do it yourself, here are the general steps you can follow:

Materials Needed: condensate drain line

PVC Pipe (typically 3/4 inch for residential use)
PVC Cutter
PVC Glue and Primer
P-trap
Air Gap
Condensate Drain Air Gap
Condensate Pump (if required)
Tape Measure

Step-by-Step Guide:

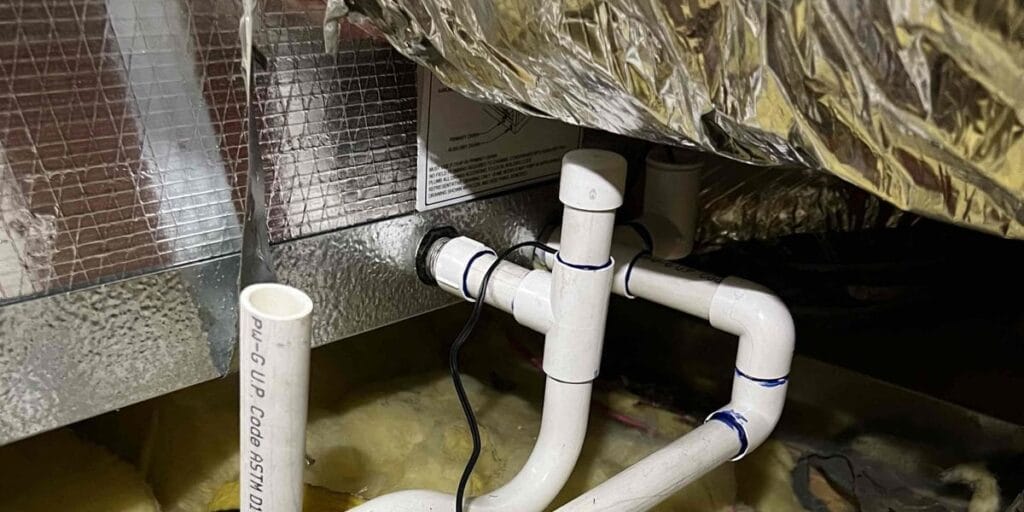

Identify the condensate drain outlet: The condensate drain line is connected to the drain pan, which is typically located underneath your indoor air handler unit.
Determine the route for the drain: Your drain line should ideally lead outside or to a nearby floor drain. The exact location will depend on the design of your home and your local building codes. Keep the AC drain line as short and direct as possible. It is important to use indirect drains to prevent sewer gases from entering the building.
Plan for a trap and vent: A proper drain setup should include a P-trap, which is a U-shaped pipe that prevents backflow of gases. After the P-trap, there should be a vent that is at least as large as the drain line and is taken off the top of the drain line. This will allow for proper drainage. Air gaps are crucial in preventing sewer gases from entering the building.
Measure and cut your PVC pipe: Measure the distance for your drain line, then cut your PVC pipe to match these measurements.
Connect the PVC pipe: Connect the pipe to your condensate drain outlet. Ensure you have the P-trap in place, and remember to use PVC glue and primer to secure all the connections. Give it plenty of time to dry before proceeding. Direct connections can be dangerous, so it is important to follow the National Standard Plumbing Code requirements.
Slope the line downward: Make sure your drain line slopes downward away from the HVAC unit. This ensures that gravity will carry the water away. The standard slope is at least 1/4 inch of drop per foot of line.
Add an air gap: It’s essential to have an air gap in your drain line. This is simply an open vertical space between the outlet of one pipe and the inlet of another. The air gap prevents water from backing up and overflowing. This is often installed where the drain line exits the house. Air gaps also play a role in preventing siphoning of water from P-traps and ensuring proper drainage.
Check if you need a condensate pump: If you can’t use gravity to drain the water (like if you’re draining upward into a sink), you’ll need a condensate pump. This is a small device that will pump the water where it needs to go.
Flush and test the line: Once everything is installed, you should flush the line with water to make sure it’s draining correctly. This will help you catch any leaks or issues before they become a problem. Ensuring that the condensate lines are free from blockages is important to prevent the multiplication of bacteria and the entry of sewer gases.

Professional HVAC technician installing AC condensate drain line with air gap in Southern Nevada residence

Professional AC Condensate Drain Installation with Air Gap

In our arid climate where AC systems run almost constantly, proper condensate drainage is crucial for system efficiency and home protection. Bob’s Repair licensed technicians specialize in code-compliant installations that prevent backflow and ensure optimal performance in high-temperature environments.

Desert-Ready Installation

Specialized drainage solutions designed for high-efficiency cooling systems in arid environments.

Backflow Prevention

Code-compliant air gap installation protecting against harmful gas backup in residential systems.

Expert Compliance

Full adherence to Southern Nevada building codes and local water management regulations.

Service Coverage Areas

Anthem, NV Enterprise, NV Green Valley, NV Henderson, NV North Las Vegas, NV Paradise, NV Spring Valley, NV Summerlin, NV

View complete service area coverage

For professional assistance with your AC condensate drain line installation and to ensure compliance with local codes, contact Bob’s Repair today.
